The Graphic Music system is a US Patent # 4885969, and is an integral music system for use in association with all chromatically scaled musical instruments.
Abstract of the Graphic Music System
An integral music system for use in association with all chromatically scaled musical instruments comprising an improved graphic keyboard design utilized in various mechanical, electric and over-keyboard embodiments, and a cooperative improved hexaline scoring method utilizing octave-designating noteforms, and a cooperative improved graphic referencing method utilizing color, symbol and tactual coding means. The improved graphic keyboard design has essentially coextensive alternately arranged, uniformly narrowed and widened keys. The improved hexaline scoring method has one or more six-line staffs, which respectively utilize eight distinct noteforms to provide an eight-octave compass for each staff. The improved graphic referencing method has code formats, which correlate the lines and spaces of the improved scoring method with the keying means of the various instruments. The invention additionally comprehends manual and computer assisted methods for converting existing music into the improved scoring format.

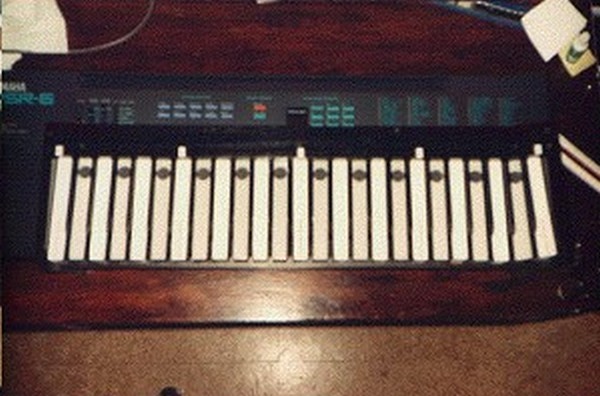

Picture of a Model of the Graphic Music System Keyboard
